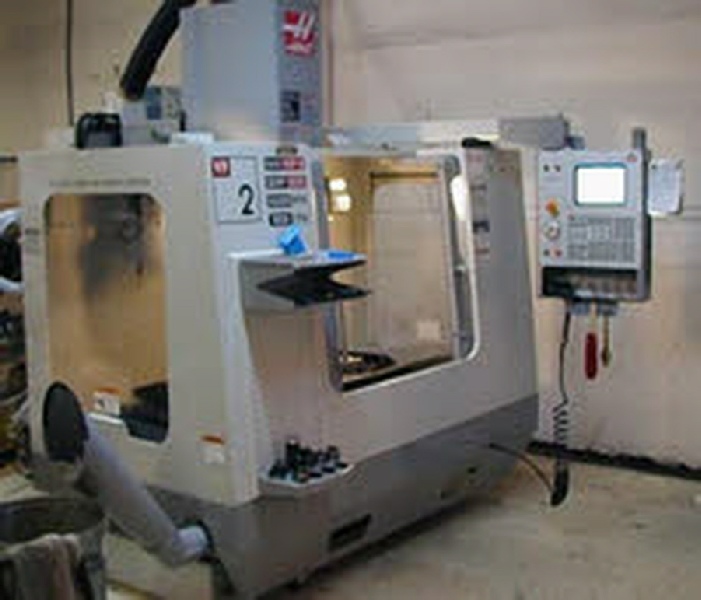

Our HASS Vertical Mill (CNC)

Ordering Instructions:


  1. Click the 'Add to Cart' button to add the item to your Shopping Cart. At the Shopping Cart, enter the quantity you wish to purchase in the Quantity field. Close the Shopping Cart window to return here to continue shopping.


  1. When you are done click the             at the bottom of the page to view the shopping cart and complete the order.



NOTE: For orders outside North America please contact us for shipping amount before ordering.

All prices are in Canadian Dollars.  Click HERE for exchange rates.

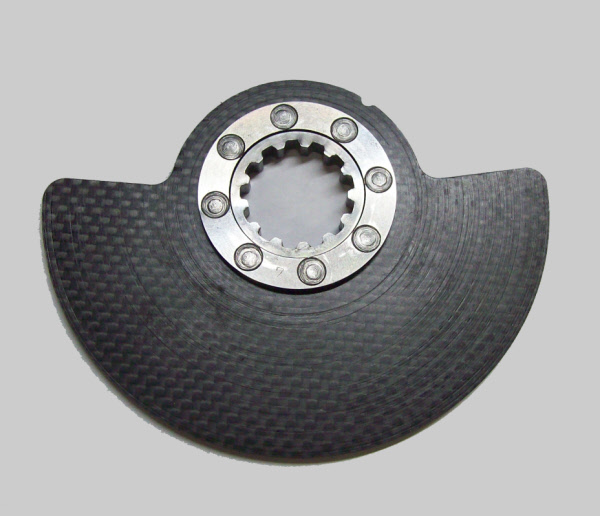

Suzuki RG 500 Carbon Fibre Rotary Valve

$400.00 Canadian Dollars
plus $20.00 shipping by Canada Post


BACK BY POPULAR DEMAND

These CARBON ROTARY VALVES are made of carbon fibre, using the stock hardened steel hub. Available in both stock and high performance timing.  Valve is 1.4mm thick. Anti-friction material on outer cover must be removed to install the valves.


Click To See Larger Image
Timing

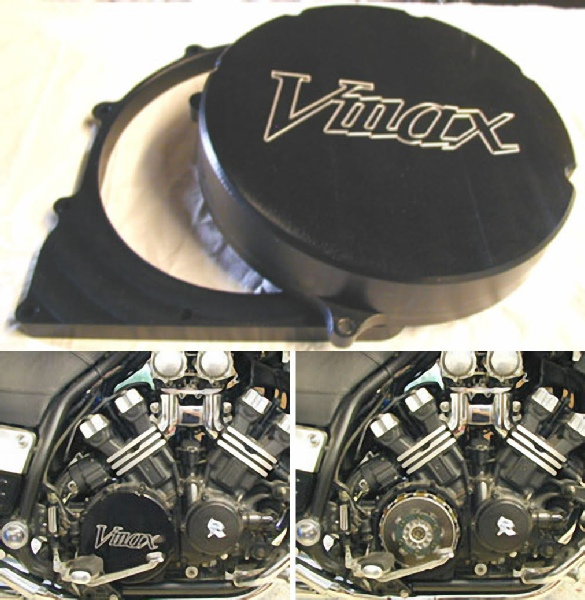

Yamaha V-MAX Quick Change Clutch Cover

$249.00 Canadian Dollars
plus $30.00 shipping by Canada Post


This CNC machined V-MAX Quick Change Clutch Cover fits all years of V-MAX 1200. They are ideal for both Drag Racers & serious Street Racers. This cover eliminates the need to completely remove the factory clutch cover to inspect or replace the clutch on your V-MAX.


Click To See Larger Image

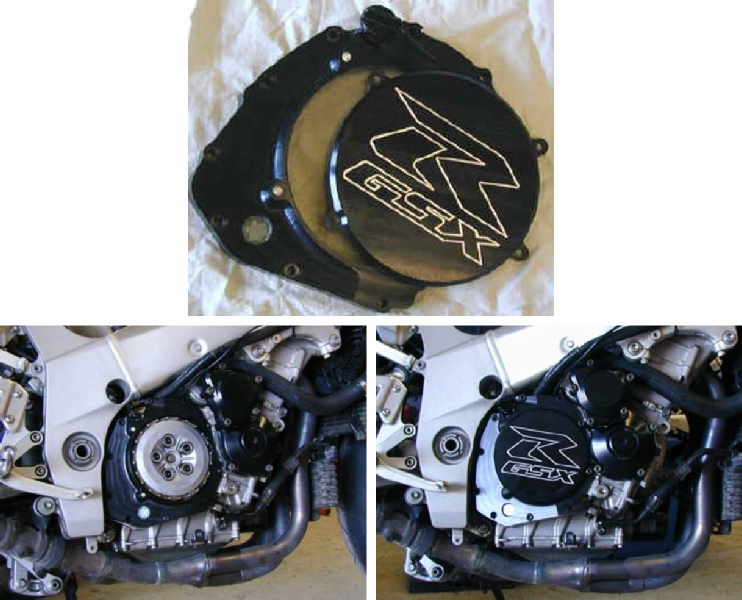

Suzuki GSX-R 1000 Quick Change Clutch Cover

$395.00 Canadian Dollars
plus $30.00 shipping by Canada Post


This CNC machined GSX-R 1000 Quick Change Clutch Cover is made from 6061 t6. They are ideal for both Drag Racers & Road Racers. This covers two piece design eliminates the need to completely remove the cover to inspect or replace plates, alter slipper mechanisms or alter lockup. Available in two styles. Shallow cover for road racing or Deep cover for Drag Racers that use lock-up systems.


Click To See Larger Image

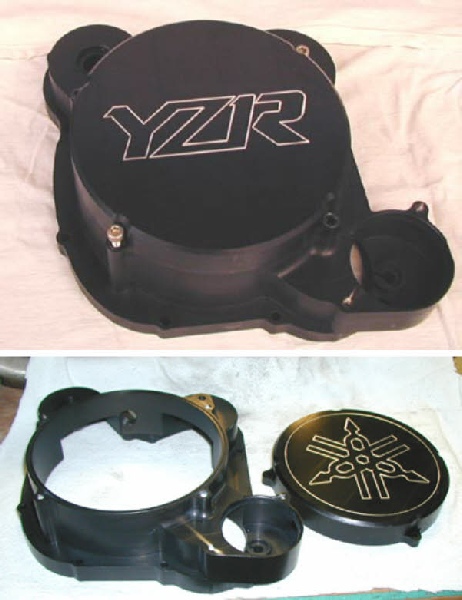

Yamaha RZ 500 Quick Change Clutch Cover

$595.00 Canadian Dollars
plus $30.00 shipping by Canada Post


This CNC machined RZ 500 Quick Change Clutch Cover is made from 6061 t6. They are ideal for both Street & Road Racers. This covers two piece design eliminates the need to completely remove the cover to inspect or replace plates, alter slipper mechanisms or alter lockup. Available in two styles to fit stock RZ/RZV chassis or for Modified TZR250 (3XV) chassis.


Click To See Larger Image

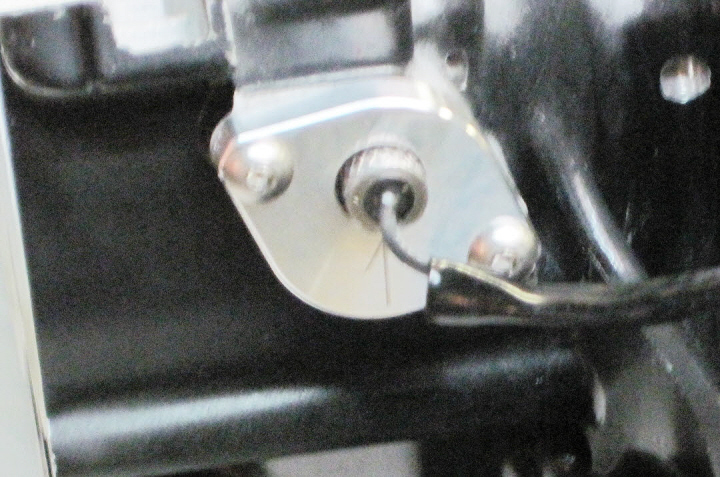

Suzuki RG500 Ignition Advancer

$200.00 Canadian Dollars
includes postage to anywhere in continental North America


CNC'd unit giving 4 degrees of advance. We slotted a unit and made dyno runs from 0 to 6 degrees in 1 degree increments and found 4 degrees to be the best. Simply bolt in, solder on your plug, and go. Unit even has an arrow to indicate which way to install.


Click To See Larger Image

Last updated February 9, 2012

Home

©Copyright 2002-2015

Works Avenue

Click To See Larger Image

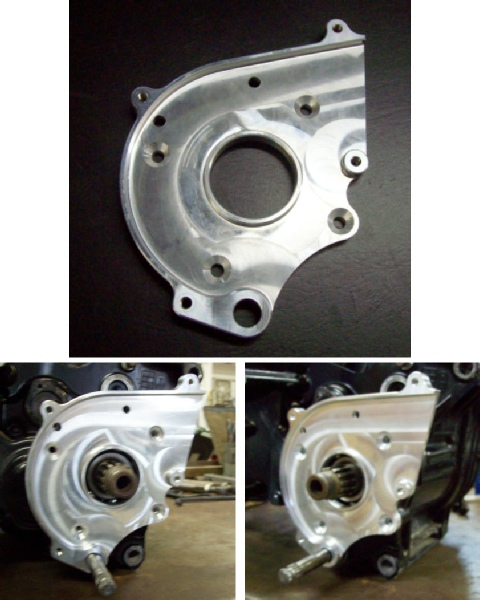

Suzuki RG500 and RG400 Shift Shaft Support Plate

$195.00 Canadian Dollars
plus $15.00 shipping by Canada Post


CNC machined with needle bearing for shift shaft support.  Basically a copy of the Dromey/Drysdale/Dent unit with a few mods.  We have included two holes to get at the lower neutral switch and oil injector bolts without removing this plate.  We also counterbored the bearing further in to allow the use of the stock shaft retaining clip.  A set collar is included, but in certain instances, such as RGV conversions, where the motor tips slightly forward or using a taller C/S sprocket, the chain may contact the collar.  The collar is not required with this unit.

Click To See Larger Image Click To See Larger Image

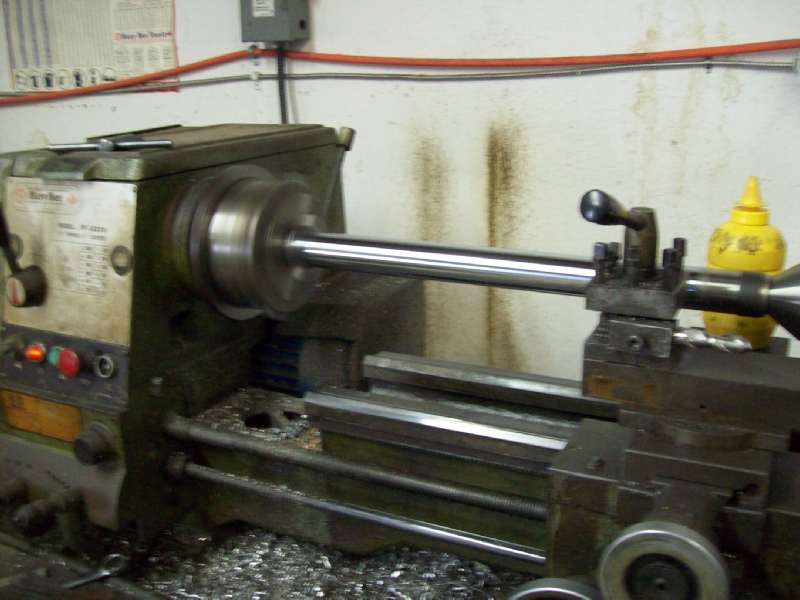

Our Lathe

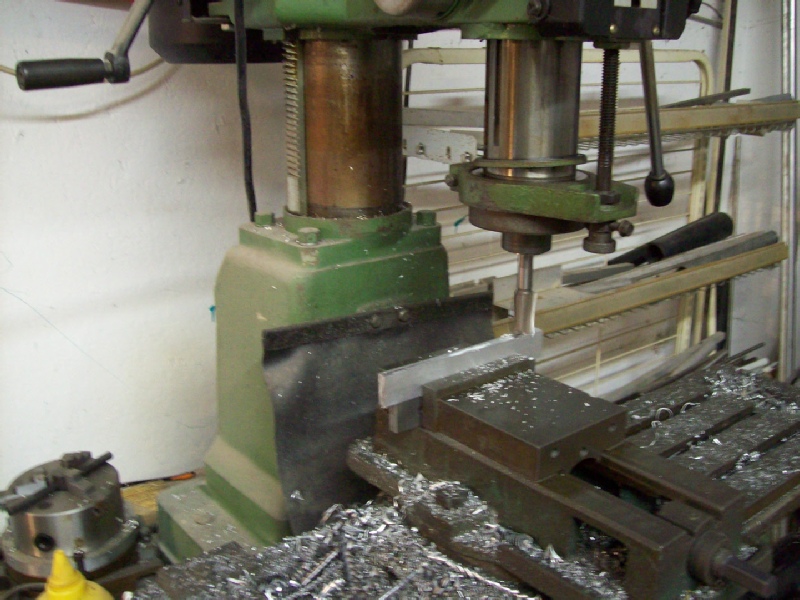

Our Mill

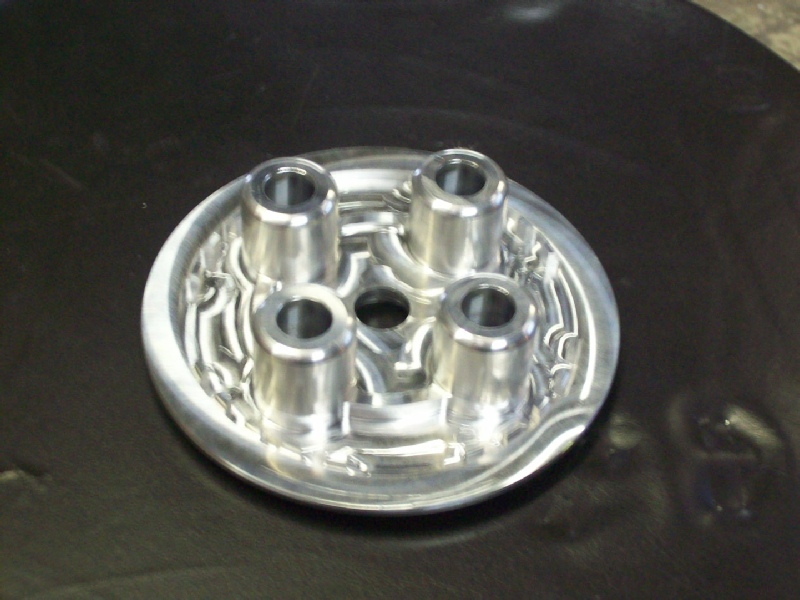

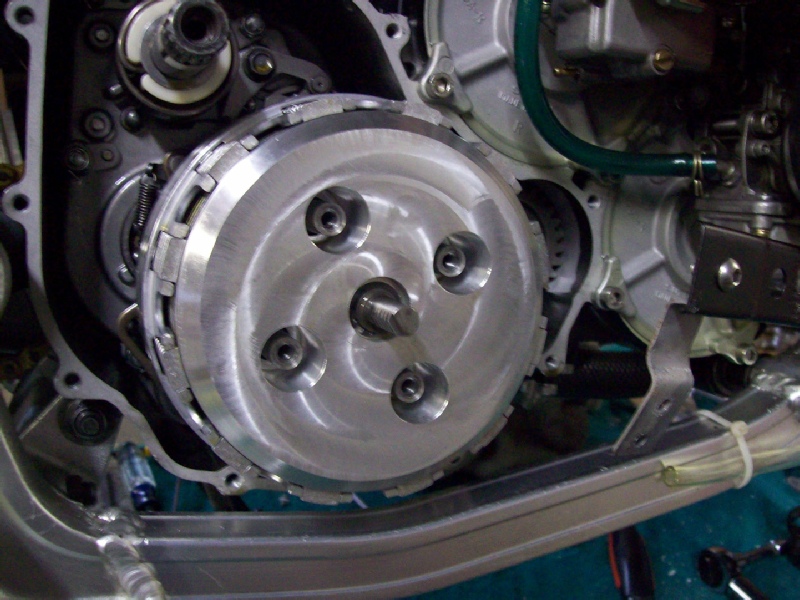

Suzuki RG500 RG400 Clutch Pressure Plate

$275.00 Canadian Dollars
plus $20.00 postage to anywhere in continental North America.

Overseas please email for postage cost.


"This CNC'd pressure plate is aimed at those engines making more HP than stock. Higher HP engines run the risk of having the clutch slip so my RG500 racer uses the MT9 springs and 10 plate pack (http://rg500delta.com/RG500_clutch.html). However it refused to find neutral and was a bitch to downshift entering corners. Further investigation revealed that the HD springs applied enough force on the stock pressure plate when the clutch lever was pulled in to warp the pressure plate towards the clutch plates which prevented them from separating. This CNC'd pressure plate solves that problem. Made from billet 6061 but this unit is not pocketed and relieved on the back side like the stock unit allowing a dramatic increase in strength. "


Click To See Larger Image Click To See Larger Image
